Understanding 4-Bit Binary Adders and Their Uses

Prologue

When it comes to understanding the backbone of digital computing, few components are as essential as the 4-bit binary adder. This little chip does the heavy lifting behind every number you see processed in electronics — from simple calculators to complex microprocessors. If you’ve ever wondered how your devices add binary numbers quickly and reliably, this article will shed some light.

A 4-bit binary adder takes two binary numbers, each made up of 4 bits, and adds them together to produce a sum. But this process isn’t just about adding 0s and 1s — it involves intricate logic circuits and gate operations that mimic the rules of arithmetic in hardware form.

popular

In the sections to follow, we’ll break down exactly how the 4-bit adder works, step by step. You’ll see how simpler building blocks like half adders and full adders come together to form the complete unit. We’ll also explore why this matters, especially in fields like electronics, trading systems, and financial software where speed and accuracy of calculation are key.

Understanding the 4-bit binary adder isn’t just academic — it’s fundamental knowledge if you're diving into the hardware side of computing or want a solid grip on how binary addition powers devices around the world.

By explaining design principles and real-world applications, this guide aims to provide clear, actionable insights for students, engineers, and professionals alike. So, buckle up! We’re about to take a clear-eyed look into one of digital logic’s most practical tools.

Basics of Binary Addition

Binary addition forms the foundation for digital electronics, especially when dealing with computing and data processing. Without a solid grasp of how binary numbers add up, designing efficient binary adders like the 4-bit adder can become confusing. For professionals and students in Pakistan focusing on electronics or computing, knowing the basics ensures smoother comprehension of more complex circuits down the line.

In everyday terms, binary addition is like adding numbers, but instead of base-10, it operates in base-2, involving only 0s and 1s. This simplicity makes it the backbone of everything from simple calculators to advanced microprocessors. It’s important to understand not just the mechanics of addition but why and how it works at a bit level—this knowledge translates directly into designing faster and more efficient hardware.

Binary Number System and Bit Representation

Understanding bits and bytes

Bits are the smallest units of data in computing, representing a single binary digit—either a 0 or 1. When you put eight bits together, you get a byte, which can represent 256 different values (0 to 255). For instance, a byte can store the number of products sold in a small store daily without overflow.

Understanding bits and bytes helps in visualizing how computers store and process numbers. When working with binary adders, each bit represents a binary input or output. For example, when adding two 4-bit numbers, each corresponding bit needs to be correctly accounted for, including the carry from the previous bit addition.

Binary place values

Each bit in a binary number has a place value that is a power of 2, starting from 2^0 at the rightmost bit. For example, the binary number 1101 corresponds to:

• (1 × 2³) + (1 × 2²) + (0 × 2¹) + (1 × 2⁰)

• Or 8 + 4 + 0 + 1 = 13 in decimal

This place value system is crucial during addition because bits line up by their position. Just like decimal addition where tens add to tens and hundreds to hundreds, binary bits align by their power of two values. Recognizing this helps troubleshoot errors in hardware or software implementations when a carry bit muddles the final sum.

How Binary Addition Works

Rules for adding bits

The rules for binary addition are straightforward but fundamental:

• 0 + 0 = 0

• 0 + 1 = 1

• 1 + 0 = 1

• 1 + 1 = 0 with a carry of 1

To make it clearer, imagine adding two binary digits across four bits: if we add 1010 and 0101, you go bit by bit from right to left, applying those rules. The carry generated from adding two 1's moves to the next bit just like carrying over in decimal addition.

These simple rules are applied millions of times per second inside processors, enabling them to perform arithmetic and logic operations.

Role of carry in binary addition

Carry is the sneaky component that can make or break a binary addition's correctness. Whenever two '1's add up, it forces a carry-over to the next more significant bit. For example, adding 1 + 1 in binary doesn’t just give 0—it outputs a 0 and sends a 1 to the next bit’s addition stage.

This carry propagation is why designing adders isn’t as trivial as just connecting bits. Carrys have to be propagated along chained bits correctly, which can introduce delays.

Understanding how carry bits move and affect the final sum is essential for optimizing digital circuits, especially when building larger adders like 4-bit or 16-bit versions. Overlooking this can lead to timing issues or incorrect calculations in your designs.

Recognizing the carry’s role also helps in appreciating more advanced adder designs that try to speed up this process, such as carry lookahead adders.

Having a clear view on the basics of binary addition sets a strong base to further explore the construction and efficiency of 4-bit binary adders. It’s the stepping stone everyone in the computing or electronics field must cross before moving into actual circuit design or microprocessor programming.

Foreword to Binary Adders

Binary adders form the backbone of digital computation. Before diving into the nuts and bolts of a 4-bit binary adder, it's important to understand what binary adders are and why they matter. In simple terms, a binary adder is a digital circuit that performs the addition of binary numbers. This is no small matter; computers rely on these circuits to carry out all kinds of arithmetic operations behind the scenes.

Imagine you’re working with a microcontroller in an embedded system — say, an Arduino controlling a smart irrigation system. When it calculates water flow or sensor readings, a binary adder is quietly crunching numbers to ensure the system responds correctly. Understanding binary adders lets you appreciate these small yet crucial parts of digital electronics.

Half Adder Circuit and Operation

Logic gates used in half adders

The half adder is the most basic form of binary addition. It uses only two logic gates: an XOR gate and an AND gate. The XOR gate handles the sum output, giving a '1' only when exactly one input bit is ‘1’. Meanwhile, the AND gate processes the carry output, which is ‘1’ only when both input bits are ‘1’. This simple setup is why the half adder serves as a foundational building block for more complex adders.

Think of it this way: when you add 1 and 1 in binary, the result is 10 — which means the sum is 0, and you carry over 1 to the next bit. The half adder’s AND gate catches this carry; without it, the addition would be incomplete. This design insight is fundamental to grasping how binary arithmetic works at the circuit level.

Limitations of half adders

Despite its simplicity, the half adder can only add two single bits without accounting for any incoming carry from a previous addition. This is a serious limitation because real binary addition, especially with multi-bit numbers, must consider carry-in values.

Imagine you want to add two 4-bit numbers. The right-most bit addition might produce a carry that needs to be included in the next bit’s addition. The half adder lacks this capability, which means it can't efficiently handle multi-bit addition by itself. This constraint points us straight to the full adder circuit, which solves this exact problem.

Full Adder Circuit Explained

Integrating carry inputs in addition

A full adder builds directly on the half adder’s concept by introducing a third input: the carry-in. This means a full adder takes three bits — two from the numbers you want to add and one carry bit from the previous addition. This is essential when you’re chaining multiple adders to process larger binary numbers.

Technically, the full adder includes two half adders and an OR gate. First, it adds the two significant bits using a half adder. Then it adds the carry-in with the sum from the first half adder. Finally, it combines the two carry outputs using an OR gate. This clever design enables the ripple carry effect where carries flow from one bit position to the next.

popular

In your microprocessor’s arithmetic logic unit (ALU), the full adder plays a starring role by managing bits and their carries seamlessly, making sure calculations are spot on.

Comparison with half adder

The fundamental difference is the third input: the carry-in. While the half adder simply adds two bits, the full adder considers the carry from prior additions, allowing it to chain adders for multi-bit addition. If you think of the half adder as a solo musician, the full adder is like an ensemble, coordinating multiple inputs smoothly.

This difference isn't just academic. It means full adders are the building blocks for practical addition in real systems. For example, four full adders connected in series make up a 4-bit binary adder, handling everything from basic arithmetic in calculators to complex operations in processors.

Understanding the roles and limitations of half and full adders equips electronics students and professionals with the necessary foundation to design reliable and efficient digital circuits, crucial for modern computing devices.

In the following sections, we'll see how these basic components piece together to create the 4-bit binary adders widely used in digital systems today.

Building a 4-Bit Binary Adder

Building a 4-bit binary adder is a fundamental step in digital circuit design, especially for anyone interested in how computers process numerical data. Instead of dealing with single-bit additions, a 4-bit adder combines multiple bits to perform calculations on 4-bit binary numbers — which is critical because most real-world data goes beyond one or two bits.

The practical benefit here is clear: by linking simpler adders into a 4-bit system, we can handle numbers from 0 to 15 in binary, enabling more complex arithmetic operations inside microprocessors. For example, simple calculators or embedded systems often use 4-bit adders because they strike a good balance between complexity and capability.

Understanding this design also sets the stage for appreciating how more advanced adders work in modern computing devices. It shows the core idea of scalability — how building blocks can connect together to handle larger tasks.

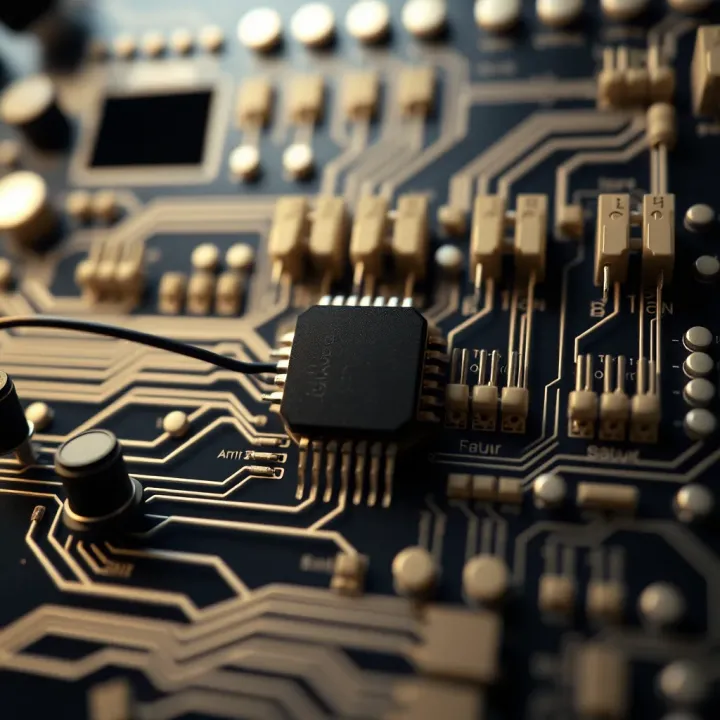

Connecting Multiple Full Adders

Series connection of full adders

To handle 4-bit numbers, four full adders must be connected in series. Each full adder handles one bit from each number, plus the carry from the previous bit. This chain starts with the least significant bit (LSB) and proceeds towards the most significant bit (MSB).

This series approach lets the carry bit move from one adder to the next, which is essential because addition of bits sometimes generates a carry beyond the current bit's value. For instance, adding 1 and 1 in binary yields 10, so the adder passes the ‘1’ to the next stage acting as a carry-in.

Think of it like handing off a bucket in a relay race – each runner (full adder) passes the carry to the next runner so the addition continues smoothly. Without this series connection, the adder couldn't correctly add multi-bit numbers.

Propagation of carry bits

The downside of series linking is that carry propagation can slow the operation. Each full adder must wait for the carry from the previous one before completing its sum. This delay, known as carry ripple, adds up as the adder’s bit-width increases.

For example, if the carry from the first bit takes 2 nanoseconds to be produced, the second bit’s adder will wait for that before processing, and so on — leading to longer total addition time.

In practical terms, this limits the overall speed of arithmetic operations in microprocessors. Designers must consider this propagation carefully, especially as processors demand quicker calculations.

Understanding Carry Lookahead for Faster Addition

Problems with carry ripple

The primary issue with carry ripple is its impact on speed. Since each adder waits sequentially for the carry-in, the delay grows linearly with the number of bits. This makes ripple carry adders less suitable for high-speed or larger bit-width operations.

Imagine a domino line where each domino must fall before the next moves; the speed is limited by the slowest domino. Similarly, the carry has to "fall" or propagate through all previous adders before a final sum can be accurately produced.

This limitation motivated the development of faster techniques, such as carry lookahead.

Basic concept of carry lookahead

Carry lookahead tackles the delay issue by predicting the carry bits in advance instead of waiting for ripple propagation. It does so by generating two signals per bit: "generate" (which indicates if the bit pair will produce a carry regardless of the input carry) and "propagate" (which shows if the bit pair will pass a carry from the previous bit).

Using these signals, the lookahead logic computes the carry for each bit simultaneously. So instead waiting for the first carry to ripple through all stages, the circuit forecasts carry bits quickly.

This is like having an expert who can see the entire domino setup and predict which domino will fall next, speeding up the process substantially.

For example, Intel’s early processors incorporated carry lookahead adders to push speeds beyond what ripple carry adders could handle, directly affecting overall performance.

Using carry lookahead in 4-bit binary adders can reduce delay drastically, making calculations faster without needing to redesign the entire system.

In summary, building a 4-bit binary adder is not just about connecting adders, but also about understanding how carry affects speed. Recognizing these factors helps in designing efficient digital systems, from simple calculators to complex microprocessors.

Practical Implementation and Applications

Understanding the practical side of 4-bit binary adders gives real meaning to their design. It’s one thing to know how these adders work in theory, but seeing them applied in real devices or systems adds valuable insight. In practice, these adders form the backbone of many digital circuits, especially in small-scale computing and embedded systems where simplicity and efficiency are key.

4-bit adders are common in microprocessor design and digital electronics, where they provide the basic arithmetic needed for more complex calculations. Knowing the applications helps learners and professionals grasp why even a seemingly simple circuit is vital to modern technology. This section sheds light on where these adders fit and their roles in larger, more intricate systems.

Using 4-Bit Adders in Microprocessors

Role in arithmetic logic units (ALUs)

The arithmetic logic unit (ALU) in a microprocessor performs operations like addition, subtraction, and other basic arithmetic. At the heart of the ALU lies the 4-bit binary adder, handling the addition tasks that are crucial for the CPU's arithmetic operations. These adders process small chunks of data simultaneously—4 bits at a time—which helps maintain simplicity while building up to the larger word sizes found in modern processors.

In practical terms, the 4-bit adder simplifies the design of an ALU by breaking down addition into manageable lengths and chaining multiple adders together for wider data. For example, a 32-bit processor can be built using eight connected 4-bit adders, which keeps the design modular. The modular approach also makes testing and debugging more straightforward, speeding up development cycles.

The ability of 4-bit adders to neatly fit into ALUs means they are indispensable for the fundamental task of arithmetic computation in CPUs.

Effect on processor speed

Processor speed doesn’t just hinge on raw clock cycles. The delay in carrying out additions within the ALU directly impacts how fast a CPU operates. A 4-bit adder, when used in a ripple-carry configuration, passes the carry output bit-by-bit from one stage to the next, which can slow things down as the data width grows.

To counter this, designers often use techniques like carry lookahead in conjunction with 4-bit adders to speed up carry propagation. This optimization reduces the waiting time for the carry bits to ripple through, thereby improving the overall speed of the processor. Fast addition means faster instruction execution, which benefits everything from simple calculations to complex algorithm processing.

Applications in Digital Systems

Embedded systems examples

In embedded systems, where resources are limited and power efficiency is critical, 4-bit adders find frequent use. Devices like digital watches, small sensors, and simple control modules lean on 4-bit adders for arithmetic tasks. Their straightforward structure means low power consumption and ease of integration with microcontrollers.

For instance, a temperature control system in a smart thermostat could use 4-bit adders to process sensor inputs and calculate adjustments quickly without needing heavy computational power. The adder’s simplicity lowers manufacturing costs and extends battery life—two vital factors in embedded products.

Use in simple calculators

Simple calculators are a textbook use case for 4-bit adders. Each digit of a calculator can be treated as a 4-bit binary number, and adding these digits involves chaining multiple 4-bit adders. Early handheld calculators relied heavily on this approach due to the limited technology available.

Even today, the principle holds in educational tools and budget calculators, where speed and complexity are not the priority but accurate, reliable addition is. Understanding how 4-bit adders work provides insight into how these everyday devices perform their fundamental math operations.

By exploring these areas, it becomes clear that the 4-bit binary adder isn’t just an academic concept but a practical component with real-world impact—found at the core of faster microprocessors, efficient embedded systems, and simple calculators alike.

Challenges and Design Considerations

When designing a 4-bit binary adder, engineers face several challenges that can affect performance and efficiency. It’s not just about jamming together logic gates; timing and power play a big role here. Understanding these design considerations helps in creating adders that work reliably and efficiently in real digital systems.

Delays and Timing Issues

Impact of propagation delay

Propagation delay is the time a signal takes to travel through a logic gate or circuit. In a 4-bit adder, each full adder depends on the carry input from the previous stage. This sequential dependency means any delay stacks up — a phenomenon known as carry ripple delay. For example, if the first full adder has a delay of 10 nanoseconds, the fourth one could see up to 40 nanoseconds before it completes its output. This can seriously bottleneck the processing speed in microprocessors or embedded systems.

The practical takeaway is that longer propagation delays limit how fast the overall system can operate. For simple applications like basic calculators, this delay might be negligible, but in high-speed computing, these milliseconds—or rather, nanoseconds—count. Knowing this helps designers balance speed vs. complexity in their projects.

Methods to minimize delay

One straightforward way to combat delay is to switch from ripple-carry adders to carry lookahead adders. These circuits predict carry bits early, rather than waiting for them to ripple through each full adder. By creating a parallel carry generation, the total delay drops drastically, allowing for faster computing.

Another approach involves using faster logic gates or optimizing the transistor level design, like reducing gate capacitance or shortening wire lengths in the chip layout. Sometimes, adding buffers between stages helps maintain signal integrity for longer circuits.

Prototyping and simulation tools such as Cadence or Mentor Graphics also assist in identifying timing bottlenecks early. These methods ensure the adder performs quickly enough for the intended application without unnecessary overdesign.

Power Consumption Factors

Trade-offs between speed and power

Speed and power often pull in opposite directions. Pushing a 4-bit adder to run faster usually means increasing the switching frequency or using more power-hungry transistors, like lower threshold voltage devices. This can boost current leakage and heat generation, draining batteries faster in portable electronics.

On the flip side, lowering power by throttling clock speed or using high-threshold voltage transistors can make circuits slower or less responsive. For example, in wearable devices, saving battery life might be more important than ultra-fast calculations, so designers intentionally accept slower addition speeds.

Finding the right balance between these factors depends on the product’s goals — no one-size-fits-all here.

Low power design techniques

To curb power consumption without sacrificing too much speed, designers use several clever tricks. Clock gating, for instance, disables the clock signal to parts of the adder not currently in use, cutting dynamic power waste.

Another popular method is the use of sub-threshold logic, where transistors operate below their typical threshold voltage, drastically reducing power but requiring careful attention to noise margins.

In some cases, designers experiment with multi-threshold CMOS (MTCMOS) technology, which combines high-speed and low-power transistors to optimize performance during different operation modes.

Practical example: In embedded systems powering remote sensors, using low power adders ensures longer battery life while performing necessary calculations reliably.

Incorporating these design considerations helps create a balanced 4-bit binary adder that meets real-world demands, whether it’s blazing fast computation or power-conscious operation in constrained environments.

Summary and Future Trends in Binary Addition

In wrapping up, it's clear that understanding how a 4-bit binary adder functions is more than just an academic exercise—it's the backbone of many digital systems you encounter daily. This section draws together the key insights about the binary addition process, especially the way digital circuits handle sums and carries across multiple bits, and hints at where these technologies are headed next.

The 4-bit adder, despite its seeming simplicity, showcases core principles that scale up to much larger adders used in computers and embedded devices. Engineers and students alike need to appreciate both the technical details and practical constraints, like timing delays and power consumption, which influence real-world circuit design. These considerations ultimately affect everything from processor speed to battery life in gadgets.

By looking ahead, this section also introduces newer approaches and fresh avenues such as advanced adder structures that aim to push the envelope in speed and efficiency. As digital systems grow more complex and the demand for performance rises, these advances offer promising routes to meet those challenges.

Emerging Technologies in Digital Adders

Advanced adder architectures push beyond traditional ripple-carry or basic carry-lookahead designs. For example, carry-save adders and parallel-prefix adders like the Kogge-Stone adder dramatically reduce delays by simultaneously calculating carries across multiple bits. This minimization of propagation delay is crucial for high-speed CPUs and DSPs. Recognizing these architectures helps students and professionals select or design adders that fit specific performance requirements while balancing complexity and power use.

Potential in quantum computing looks at how quantum bits (qubits) could transform arithmetic operations. While classical binary adders perform addition bit by bit, quantum computing explores algorithms (like the quantum Fourier transform) that can handle sums in superposition, potentially slashing computation times for complex operations. Although quantum adders are still in early stages, understanding their theory helps electronics students grasp the future impact on processing speeds and encryption methods.

Considerations for Pakistani Electronics Students

Practical learning resources need to align with hands-on experience, which is essential given the theoretical heft of digital logic. Platforms like Arduino and Raspberry Pi kits are affordable ways to experiment with binary adders in real circuits. Universities such as NUST and PIEAS offer specialized courses and labs where students can build and test adders themselves. Utilizing these resources can cement understanding far better than just reading about logic gates on paper.

Local industry relevance must not be overlooked. Pakistan’s growing electronics sector, from consumer devices to automotive electronics, frequently employs microcontrollers and DSPs where efficient adders improve power use and performance. Companies like Engro and Hi-Tech Group invest in embedded systems development, creating opportunities for electronics graduates. Tailoring skills toward designing or optimizing adders for these areas can boost employability and innovation within the local market.

To really grasp digital addition and its future, one needs to bridge theory with practice and keep an eye on emerging tech that might reshape how computations are done tomorrow.

Together, these forward-looking insights and practical tips prepare readers, especially ambitious electronics students and professionals in Pakistan, to navigate and contribute to the digital design field effectively.
